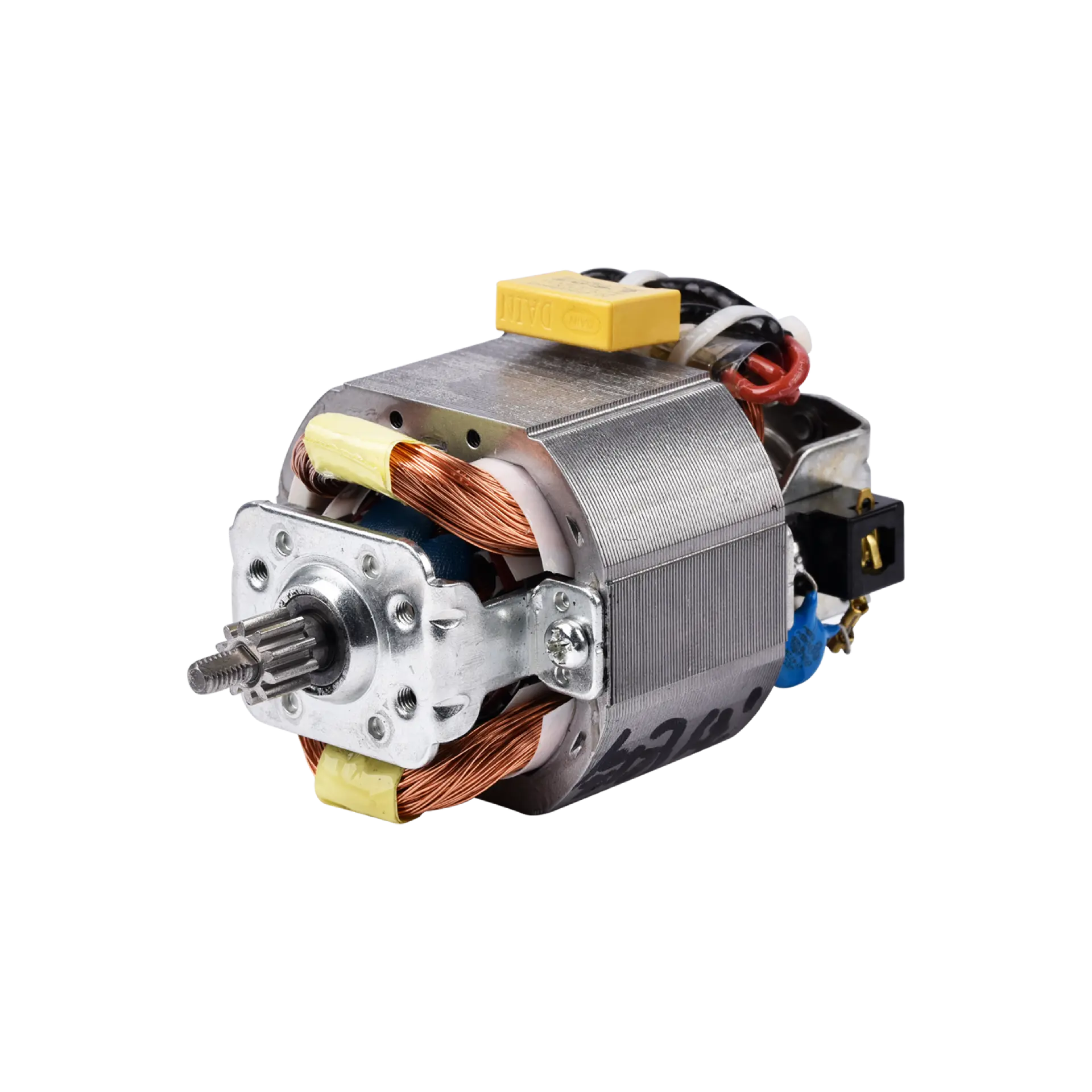

HC5430M120
Good power to weight ratio
Food Processor Motor

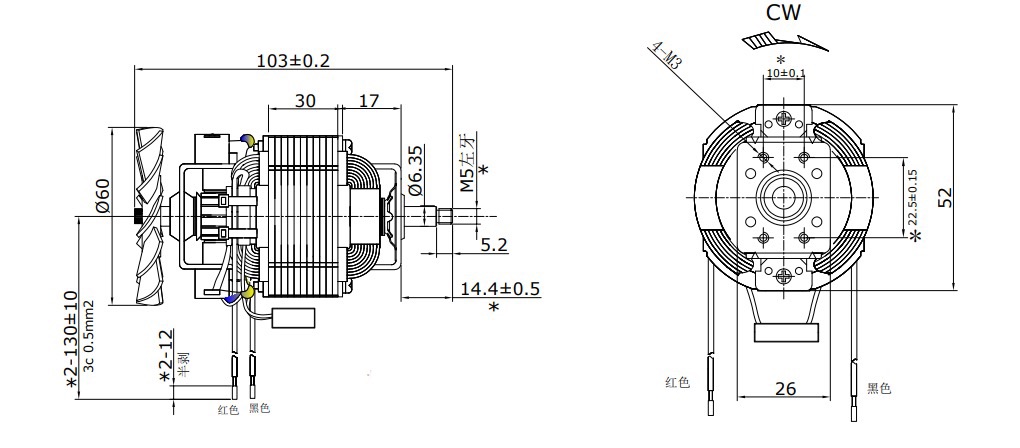

Drawings:
Description
In such cases, universal AC motors are for your products:
Your projects require high performance & high torque, and comparably high speed.
HC5430M120 is recommended for home appliance projects involving blenders, juicers, mixers, meat grinders for household, commercial, and industrial use.
Please keep the following requirements in mind before requesting customization: power, starting torque, efficiency, rated torque, rated speed or other significant factors.
The following parameters for your reference, we could customize motor for your applications.
Parameters
- Rated Voltage120V
- Rated Current2.35±10%A
- Rated Power280±10%W
- Rated Speed13000±10%RPM
- No Load Current1.05±15%A
- No Load Power125±15%W
- No Load Speed21000±15%RPM
- Output Power145±10%W
- Torque106mN.m
- Outer Diameter54mm
- Length30mm
